Ships Design

Garroni Design had the oppotunity to work with some important realities in shipping as NYK, with the projects of the main cruise ships of Crystal Cruises, FINCANTIERI, MITSUBISHI etc...

At the same time the studio focused on some concept too as the SUPER ECO SHIP 2030, which had very positive results so that the XIAMEN WORLD CRUISES  was developed on its foundations.

SUPER ECO SHIP 2030

(2010 CONCEPT)

Lenght Overall: 352.0 m / 1154’10" ft

Maximum Beam: 54.60 m / 179’1" ft

Draft: 13.0 m / 42’7" ft

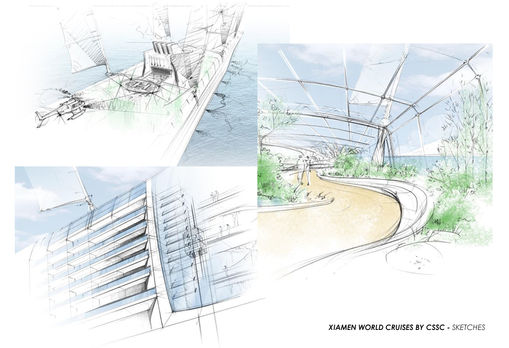

XIAMEN WORLD CRUISES BY CSSC

(2014 CONCEPT)

Lenght Overall: 308.75 m / 1013’ ft

Maximum Beam: 37.8 m / 124’ ft

Draft: 8.12 m / 27' ft

CRYSTAL SERENITY

(2005)

Lenght Overall: 249.94 m / 820’ ft

Maximum Beam: 32.3 m / 106’ ft

Draft: 7.62 m / 25' ft

Tonnage: 68870 GT

Cruising speed: 21 kts

Guests: 1070

CRYSTAL SIMPHONY

(1995)

Lenght Overall: 238 m / 781’ ft

Maximum Beam: 30.18 m / 99’ ft

Draft: 7.59 m / 24'10" ft

Tonnage: 51044 GT

Cruising speed: 21 kts

Guests: 922

CRYSTAL HARMONY

(1990)

Lenght Overall: 241 m / 790’8" ft

Maximum Beam: 29.6 m / 97’1" ft

Draft: 7.8 m / 25'7" ft

Tonnage: 50142 GT

Cruising speed: 21 kts

Guests: 960

LADY CRYSTAL

(1990)

Lenght Overall: 46.50 m / 152’6" ft

Maximum Beam: 8.8 m / 28'10" ft

Draft: 2.75 m / 9' ft

SUPER SEA CAT- FINCANTIERI

(2004)

Lenght Overall: 100 m / 328’1" ft

Maximum Beam: 17.10 m / 56’1" ft

Draft: 2.75 m / 9 ft

Guests: 600

SAMSUNG WAVE PIERCING

(2004 CONCEPT)

Lenght Overall: 83.5 m /273'11" ft

Maximum Beam: 23.0 m / 75’5" ft

Depht to main car deck: 6.8 m / 22'3" ft

Guests: 600

SES FAST FERRIES - MITSUBISHI

(1997)

SUFACE EFFECT SHIP - STEEL

Guests: 1000/2000

Speed: >40 kts

COAST GUARD PATROL - MARINA MILITARE

(2005)

SUFACE EFFECT SHIP - STEEL

Guests: 1000/2000

Speed: >40 kts
